CASE SPEEDS UP TO 12

ERGOPACK®

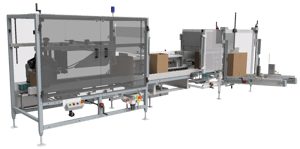

The innovative Combi Ergopack® has raised the standard for hand packing machine productivity.

Efficient and durable, the Ergopack® combines a case erector, a hand pack station, and a sealer into a compact and cost-effective work cell. This ergonomically designed pick and pack system features a hands-free indexing system that positions cases and products for optimal operator comfort, minimizing repetitive wrist and arm motions.

REQUEST A QUOTE
ERGOPACK 10 - ISO FL_Transparent_cropped (1)
  • Description
  • Features
  • Specifications
  • Downloads

Variable speed product infeed and on-demand case presentation combined with available 1-, 2- or 3-operator stations provide ultimate flexibility. This system, unique to the industry, features the built-in strength, ease of maintenance, and customer support you can expect from all Combi packaging equipment.

Ergopack is a registered trademark of Combi Packaging Systems LLC

Benefits

  • On-demand case presentation
  • Patented hands-free case indexing system
  • EZ load, walk-in 50" powered case magazine
  • Heavy duty welded tubular steel framework - lifetime warranty
  • Quick No-tool changeovers -- All digital crank adjustments
  • 3M Accuglide® tapeheads
  • Allen Bradley PLC controlled
  • Vacuum blowoff prevents corrugated dust build-up
  • Right or left hand execution
  • All stainless steel contact parts
  • Lockout / tagout safety disconnect

Electrical Service

  • 240 volt / 3 phase / 60 Hz / 20 Amp


Air Consumption

  • 80 PSI, 5 CFM @12 cases per minute

  • Optional Features

    • On-demand case presentation
    • Stainless steel framework
    • NEMA 4 compliant washdown components
    • Recirculating product conveyor
    • Height adjustment for product infeed conveyor
    • Two- or three-operator handpack station
    • Color touchscreen


Product Infeed Height

  • Case discharge height + Height of tallest box + Top flap height


Case Discharge Elevation

  • 21" to 28" (case dependent)
Model Ergopack® 10 Ergopack® 12 Ergopack® 15 Ergopack® 20 Ergopack® 25 Ergopack® 30

Min Case Range   (L x W x H)

8"x6"x5"

 8.5"x4.75"x4" 8"x6"x5" 8"x6"x5" 8"x6"x5" 8"x6"x5"
Max Case Range  (L x W x H) 24"x16"x18"  20"x13.5"x19" 24"x16"x18"  24"x16"x18"  24"x16"x18" 20"x13.5"x18"
Max Speed* 10 CPM 12 CPM 15 CPM 20 CPM 25 CPM 30 CPM
Overall Footprint 13'6"x9'8"x5'7" 12'8"x9'x5'7" 15'2"x9'7"x5'7" 15'2"x9'9"x5'7" 15'2"x9'9"x5'7" 15'2"x9'9"x5'7"


* Speeds are case size and operator dependent
**Add 24" to length for double hand pack station. Maximum case height is product dependent.

Manufacture in the State of Ohio?

The Ohio Bureau of Workers' Compensation offers Safety Grants up to $40,000 to purchase equipment that substantially reduces or eliminates injuries and illnesses associated with a particular task or operation, like our Ergopack.
