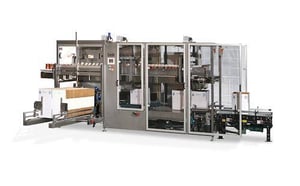

HIGH SPEED DROP PACKER WITH INTEGRATED CASE ERECTOR
The well-proven capabilities of the Combi DP drop packer have been enhanced with a higher level of efficiency. Integrated into the frame of this state-of-the-art drop packer is a Combi side belt, high speed case erector. Now an even larger variety of product sizes, shapes, weights and materials can be quickly and easily packed in large cases at speeds up to 30 cpm, while still maintaining a compact footprint. As with all our drop packers, adjustable lane guides with clamping shaft collars can be quickly and easily reconfigured using pointers and scales, giving the user the flexibility to pack multiple products on the same line.
- Features
- Specifications
- Downloads
- Automatically adjust case lift height and reconfigure the servo lane diverter through recipes contained in the HMI
- Troubleshooting and production feedback displays on OI within seconds with Combi's custom designed states screens
- Heavy duty welded steel frame with lifetime guarantee
- Powered, easy load case magazine
- Vacuum blow off prevents corrugated dust build up
- Servo driven carriage assembly
- Heavy-duty case lift assembly with powered case discharge
- Dual belt drive case sealing
- Lockout / tagout safety disconnect
Model | DP 15 | DP 20 |
Case Size Min: (LxWxH) |
8 x 6 x 5" (203x152x127mm) |
8.5 x 4.75 x 4" (203x152x127mm) |
Case Size Max: (LxWxH) |
24 x 16 x 18" (610x406x457mm) |
24 x 16 x 18" (610x406x457mm) |
Speed: Cases Per Minute* | 15 cpm | 20 - 30 cpm |
Footprint | 9'7" x 6'6" x 10'7" | 12' x 7'5" x 12" |
* Speeds are case size dependent
