ALPHAPACK® PICK AND PLACE CASE PACKING SYSTEM

The Alphapack is the new productivity solution for pick and place case packing. If you need a pick and place case packer, the Alphapack features a case erector and accommodates the widest range of case sizes and pack patterns – all while yielding the smallest footprint in the industry.

PICK AND PLACE CASE PACKAGING
The Combi Alphapack can handle special orientation or precise packaging. From flexible pouches and bags to packaging with multiple layers, the Alphapack is the answer for pick and place case packing.

REQUEST A QUOTE

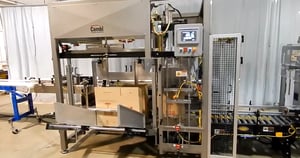

2016 Alphapack-1
  • Description
  • Features
  • Specifications
  • Downloads

The Alphapack and SPP both handle the widest range of products from flexible bags, chipboard cartons, shrink-wrapped packages to lightweight, semi-solid products or any other package that requires special handling, orientation or precise placement in multiple layers.

Alphapack is a registered trademark of Combi Packaging Systems LLC.

Features

  • Diverts up to 240 containers per minute
  • Used primarily for non-round bottles and cans
  • Safe shifting "anti-jam" design
  • No-tool adjustments
  • Also available as free standing unit over existing conveyor

Options

  • Stainless steel framework
  • High speed model at 20 cases per minute
  • Stand-alone system without case erector
  • Electrical control integration
    3rd axis step indexing conveyor available
  • Available as stand-alone system (w/o case erector)
  • Full safety interlocked guarding
  • Custom designs for special applications
  • Custom productivity feedback
    • Machine controls
    • Machine pack data and history
    • Maintenance schedule
    • Custom diagnostic capabilities
Model Alphapack® 8 Alphapack® 10 Alphapack® 15 Alphapack® 20
Min Case Range 8.5" x 4.75" x 4"  8.5" x 4.75" x 4"  8" x 6" x 5" 8" x 6" x 5"
Max Case Range 24" x 16" x 18" 24" x 16" x 18" 24" x 16" x 18" 24" x 16" x 18"
Max Speed*  8 CPM  10 CPM  15 CPM  20 CPM
Overall Footprint 8'3" x 10'6" x 10'7"  8'3" x 10'6" x 10'7"  13'6" x 10'7" x 7'4"  17'4" x 10'7" x 10'10"

 * Speeds are case size dependent
   Maximum total rotational speed 20 ppm
